Product Description
Valves
Optional Technical Features
Optional Technical Features
- Special Alloy Materail
- Flnaged ends as per DIN, BS 10, IS 6392, BS 4504
- Material of Construction as per client specifications
- Other MOC - CFS, CF8M, CN7M, HV-9, Hastelloy
- Mesh size as per clients specifications
- Butt/Socket-weld ends as per clients specifications
- Screwed cover for 1" strainer.
Strainers form an important component in any process industry such as pertrochemical, chemical fertilizer, pharmaceutical, food, textile, paper, steel cement, etc. Generally the strainer is installed prior to a valve, pump or safety devic e on any pipeline carryng the process fluid. Strainers would minimize the damage to the valves and other on line precious equipment by removing the unwanted foreign particles from the system. A strainer is necessary under these circumstances.
Arem make strainers are with utmost performance. Depending on a specific requirement strianer from the following types can be selected.
Arem make strainers are with utmost performance. Depending on a specific requirement strianer from the following types can be selected.
- Y - Type
- T - Type
- Conical Type

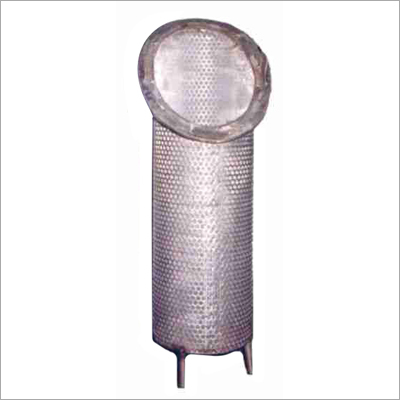

- Bucket / Basket Type.
Screens of filters are offered with materials such as SS 304 / SS 316 / Brass with Mesh size varying from 40 to 200 mesh. Also, 25 to 40 micron screens or filters are offered at per requirement.
Materials of construction include
Materials of construction include
- Cast Carbon Steel ASTM A216 Gr. WCB
- Cast STainless Steel ASTM A351 Gr, CF8/CF6M
- Forged Carbon Steel ASTM A105
- Alloy 20
- Cast Iron IS 210 Gr.20
Each Strainer is provided with a blow down / drain plug with a standard BSP connection.
